FIRE
CABINETS

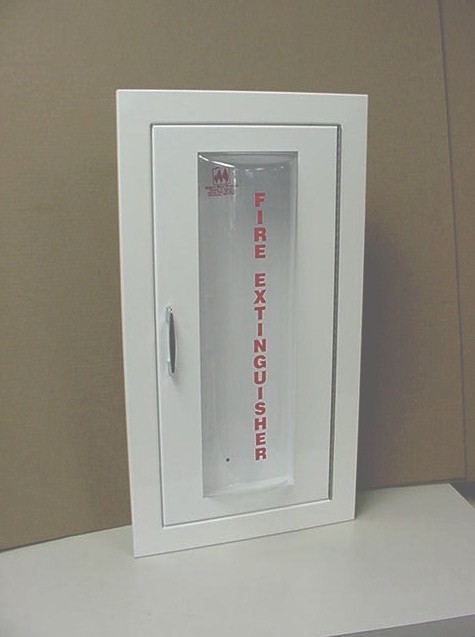

BUBBLE CABINETS
|
Great for those
situations where an extinguisher must be mounted on a thin or shallow
wall. Features a protruding, 180 degree acrylic bubble which puts
the fire extinguisher in a highly visible position.
Click on the
picture to enlarge photo.
|
Dimensions for Bubble Cabinets:
** Denotes STOCK Cabinet, painted white
w/clear bubble only!
MODEL |
INSIDE
TANK DIMENSIONS |
TRIM
DIMENSIONS |
ROUGH
OPENING IN THE WALL |
|
|
|
|
|
|
|
|
|
|
HEIGHT |
WIDTH |
DEPTH |
HEIGHT |
WIDTH |
DEPTH |
HEIGHT |
WIDTH |
DEPTH |
118TO |
24 |
11 1/2 |
4 1/4 |
0 |
0 |
0 |
0 |
0 |
4 1/4 |
118R1** |
24 |
11 1/2 |
4 1/4 |
27 1/4 |
14 7/8 |
5/16 |
25 |
12 1/2 |
4 |
118SR2 |
24 |
11 1/2 |
4 1/4 |
27 1/4 |
14 7/8 |
1 1/4 |
25 |
12 1/2 |
3 |
118SR3 |
24 |
11 1/2 |
4 1/4 |
27 1/4 |
14 7/8 |
1 1/2 |
25 |
12 1/2 |
1 3/4 |
|
|
|
|
|
|
|
|
|
|
120TO |
30 |
14 1/2 |
4 |
0 |
0 |
0 |
0 |
0 |
4 |
120R1 |
30 |
14 1/2 |
4 |
33 1/4 |
17 7/8 |
5/16 |
31 |
15 1/2 |
3 3/4 |
120SR2 |
30 |
14 1/2 |
4 |
33 1/4 |
17 7/8 |
1 1/4 |
31 |
15 1/2 |
2 3/4 |
120SR3 |
30 |
14 1/2 |
4 |
33 1/4 |
17 7/8 |
2 1/2 |
31 |
15 1/2 |
1 1/2 |
|
