FIRE CABINETS
FIRE-RATED
CABINETS
 |
This well designed

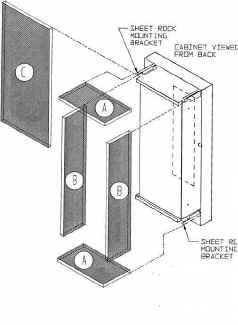

cabinet is an industry first. It requires only one tank, and the unique bracket design secures the fire rated sheet rock around the tank. It meets UL-1479 and is UL classified by Underwriters Laboratories Inc. and is for use in penetration firestop systems. Modern Metal Products is the first to have this fire rating with this design. The cabinet must be installed to our specific instructions or the rating will be void. Refer to UL Fire Resistance Directory 1996 edition - WL7005. |
Dimensions for 100 Series FIRE RATED CABINETS
| MODEL | INSIDE TANK DIMENSIONS | TRIM DIMENSIONS(OD) | ROUGH OPENING IN THE WALL | ||||||
| HEIGHT | WIDTH | DEPTH | HEIGHT | WIDTH | DEPTH | HEIGHT | WIDTH | DEPTH | |
| FSB101R1 |
18 | 8 1/4 |
5 | 21 1/4 | 11 3/4 |
5/16 | 19 3/4 | 10 | 6 |
| FSB101SR2 |
18 | 8 1/4 |
5 | 21 1/4 | 11 3/4 |
1 1/2 | 19 3/4 | 10 | 4 3/4 |
| FSB101SR3 | 18 | 8 1/4 |
5 | 21 1/4 | 11 3/4 |
3 | 19 3/4 | 10 | 2 1/2 |
| FSB1025R1 |
24 | 9 1/2 | 5 | 27 1/2 | 13 | 5/16 | 25 3/4 | 11 1/4 | 6 |
| FSB1025SR2 |
24 | 9 1/2 | 5 | 27 1/2 | 13 | 1 1/2 | 25 3/4 | 11 1/4 | 4 3/4 |
| FSB1025SR3 | 24 | 9 1/2 | 5 | 27 1/2 | 13 | 2 1/2 | 25 3/4 | 11 1/4 | 3 3/4 |
| FSB1026R1 |
24 | 9 1/2 | 6 | 27 1/2 | 13 | 5/16 | 25 3/4 | 11 1/4 | 7 |
| FSB1026SR2 |
24 | 9 1/2 | 6 | 27 1/2 | 13 | 1 1/2 | 25 3/4 | 11 1/4 | 5 3/4 |
| FSB1026SR3 |
24 | 9 1/2 | 6 | 27 1/2 | 13 | 2 1/2 | 25 3/4 | 11 1/4 | 4 3/4 |
| FSB1026SR4 | 24 | 9 1/2 | 6 | 27 1/2 | 13 | 4 1/2 | 25 3/4 | 11 1/4 | 2 3/4 |
| FSB104R1 |
27 | 12 | 8 | 30 1/2 |
15 1/2 |
5/16 | 28 3/4 | 13 3/4 | 9 |
| FSB104SR2 |
27 | 12 | 8 | 30 1/2 |
15 1/2 |
1 1/4 | 28 3/4 | 13 3/4 | 8 |
| FSB104SR3 |
27 | 12 | 8 | 30 1/2 |
15 1/2 |
2 1/2 | 28 3/4 | 13 3/4 | 6 3/4 |
| FSB104SR4 | 27 | 12 | 8 | 30 1/2 |
15 1/2 |
4 1/2 | 28 3/4 | 13 3/4 | 4 3/4 |
| FSB105R1 |
32 | 16 | 8 | 35 1/2 |
19 1/2 |
5/16 | 33 3/4 | 17 3/4 | 9 |
| FSB105SR2 |
32 | 16 | 8 | 35 1/2 |
19 1/2 |
1 1/2 | 33 3/4 | 17 3/4 | 8 |
| FSB105SR3 |
32 | 16 | 8 | 35 1/2 |
19 1/2 |
2 1/2 | 33 3/4 | 17 3/4 | 6 3/4 |
| FSB105SR4 | 32 | 16 | 8 | 35 1/2 |
19 1/2 |
4 1/2 | 33 3/4 | 17 3/4 | 4 3/4 |
