FIRE CABINETS
SERIES 100 CABINETS
|
|
|
|

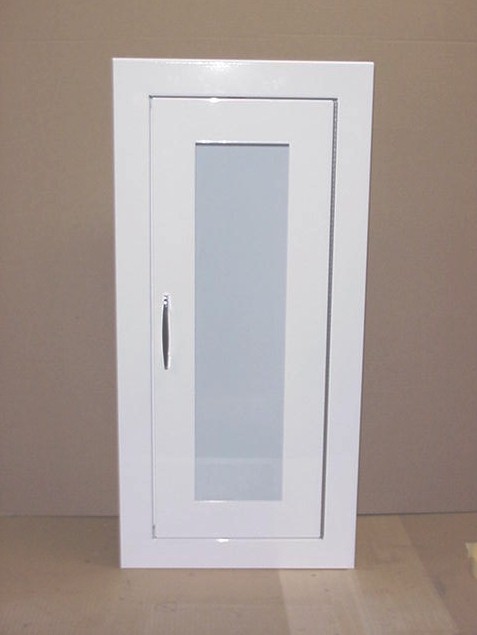

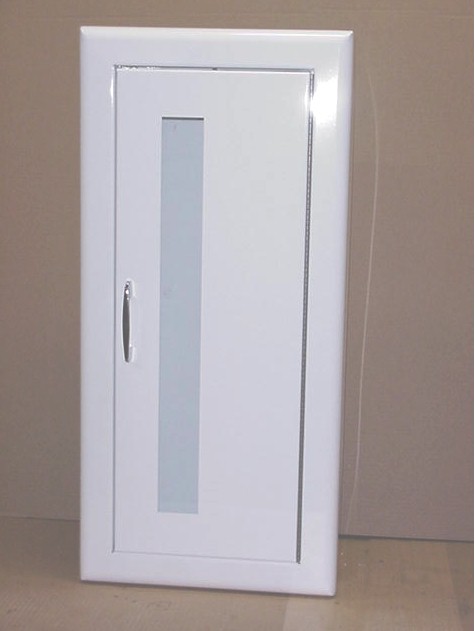

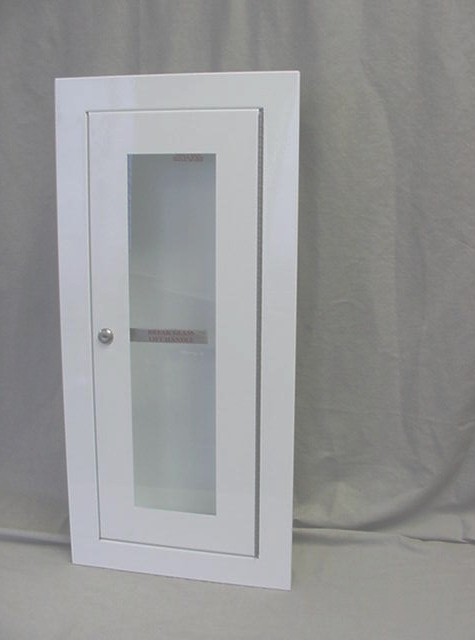

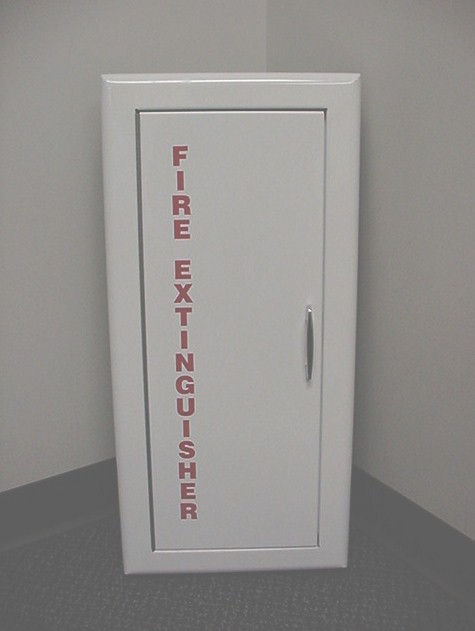

| FULL GLASS | BREAK GLASS | VERTICAL DUO | SOLID W/LETTERS |
CLICK ON THE PICTURES TO ENLARGE
|
Dimensions for 100 Series Cabinets |
|||||||
|
** Denotes STOCK cabinets, painted white with FULL GLASS, VERTICAL DUO OR BREAK GLASS ONLY |
|||||||
|
MODEL |
INSIDE TANK DIMENSIONS |
TRIM DIMENSIONS (OD) |
ROUGH OPENING IN THE WALL |
||||||||
|
Height |
Width |
Depth |
Height |
Width |
Depth |
Height |
Width |
Depth |
|||
|
101TO |
18 |
8 1/4 |
5 |
0 |
0 |
0 |
0 |
0 |
5 1/2 |
||
|
101R1** |
18 |
8 1/4 |
5 |
21 1/2 |
11 3/4 |
5/16 |
19 |
9 1/4 |
5 1/4 |
||
|
101SR2** |
18 |
8 1/4 |
5 |
21 1/2 |
11 3/4 |
1 1/2 |
19 |
9 1/4 |
4 |
||
|
101SR3** |
18 |
8 1/4 |
5 |
21 1/2 |
11 3/4 |
3 |
19 |
9 1/4 |
2 1/2 |
||
|
101SM |
0 |
0 |
0 |
21 1/2 |
11 3/4 |
5 |
0 |
0 |
0 |
||
|
|
|
|
|
|
|
|
|||||
|
MODEL |
INSIDE TANK DIMENSIONS |
TRIM DIMENSIONS (OD) |
ROUGH OPENING IN THE WALL |
||||||||
|
Height |
Width |
Depth |
Height |
Width |
Depth |
Height |
Width |
Depth |
|||
|
1025TO |
24 |
9 1/2 |
5 |
0 |
0 |
0 |
0 |
0 |
5 1/2 |
||
|
1025R1** |
24 |
9 1/2 |
5 |
27 1/2 |
13 |
5/16 |
25 |
10 1/2 |
5 1/4 |
||
|
1025SR2 |
24 |
9 1/2 |
5 |
27 1/2 |
13 |
1 1/2 |
25 |
10 1/2 |
4 |
||
|
1025SR3** |
24 |
9 1/2 |
5 |
27 1/2 |
13 |
2 1/2 |
25 |
10 1/2 |
3 |
||
|
1026TO |
24 |
9 1/2 |
6 |
0 |
0 |
0 |
0 |
0 |
6 1/2 |
||
|
1026R1** |
24 |
9 1/2 |
6 |
27 1/2 |
13 |
5/16 |
25 |
10 1/2 |
6 1/4 |
||
|
1026SR2 |
24 |
9 1/2 |
6 |
27 1/2 |
13 |
1 1/2 |
25 |
10 1/2 |
5 |
||
|
1026SR3** |
24 |
9 1/2 |
6 |
27 1/2 |
13 |
2 1/2 |
25 |
10 1/2 |
4 |
||
|
1026SR4 |
24 |
9 1/2 |
6 |
27 1/2 |
13 |
4 1/2 |
25 |
10 1/2 |
2 |
||
|
102SM |
0 |
0 |
0 |
27 1/2 |
13 |
6 |
0 |
0 |
0 |
||
|
|
|
|
|
|
|
|
|||||
|
MODEL |
INSIDE TANK DIMENSIONS |
TRIM DIMENSIONS (OD) |
ROUGH OPENING IN THE WALL |
||||||||
|
Height |
Width |
Depth |
Height |
Width |
Depth |
Height |
Width |
Depth |
|||
|
104TO |
27 |
12 |
8 |
0 |
0 |
0 |
0 |
0 |
8 1/2 |
||
|
104R1 |
27 |
12 |
8 |
30 1/2 |
15 1/2 |
5/16 |
28 |
13 |
8 1/4 |
||
|
104SR2 |
27 |
12 |
8 |
30 1/2 |
15 1/2 |
1 1/4 |
28 |
13 |
7 1/4 |
||
|
104SR3 |
27 |
12 |
8 |
30 1/2 |
15 1/2 |
2 1/2 |
28 |
13 |
6 |
||
|
104SR4 |
27 |
12 |
8 |
30 1/2 |
15 1/2 |
4 1/2 |
28 |
13 |
4 |
||
|
104SM |
0 |
0 |
0 |
30 1/2 |
15 1/2 |
9 1/2 |
0 |
0 |
0 |
||
|
|
|
|
|
|
|
|
|||||
|
MODEL |
INSIDE TANK DIMENSIONS |
TRIM DIMENSIONS (OD) |
ROUGH OPENING IN THE WALL |
||||||||
|
Height |
Width |
Depth |
Height |
Width |
Depth |
Height |
Width |
Depth |
|||
|
105TO |
32 |
16 |
8 |
0 |
0 |
0 |
0 |
0 |
8 1/2 |
||
|
105R1 |
32 |
16 |
8 |
35 1/2 |
19 1/2 |
5/16 |
33 |
17 |
8 1/4 |
||
|
105SR2 |
32 |
16 |
8 |
35 1/2 |
19 1/2 |
1 1/2 |
33 |
17 |
7 1/4 |
||
|
105SR3 |
32 |
16 |
8 |
35 1/2 |
19 1/2 |
2 1/2 |
33 |
17 |
6 |
||
|
105SR4 |
32 |
16 |
8 |
35 1/2 |
19 1/2 |
4 1/2 |
33 |
17 |
4 |
||
|
105SM |
0 |
0 |
0 |
35 1/2 |
19 1/2 |
9 1/2 |
0 |
0 |
0 |
||
