ALTA EXTINGUISHER CABINETS

            Variety, elegance and economy, by design - Alta Series fire extinguisher cabinets offer an impressive variety of door styles, glazing materials, lettering, finishes and mounting configurations. In addition to their exceptional versatility, Alta Series designs also feature durable, unitized construction for an economical solution that compliments virtually any type of construction.

Specification

            Fire extinguisher cabinet shall be Model No. FRC _________________ . Underwriters Laboratories, Inc. Classified No. 7N43 2-hour Fire-Rated unit as manufactured by Potter Roemer, Santa Ana, CA, 800-36-FIRE. Install the cabinet plumb and level, where indicated on the drawings, at heights acceptable to the authority having jurisdiction. Each cabinet shall have a Potter Roemer Model No. _____________ fire extinguisher installed inside.

Specification Example:

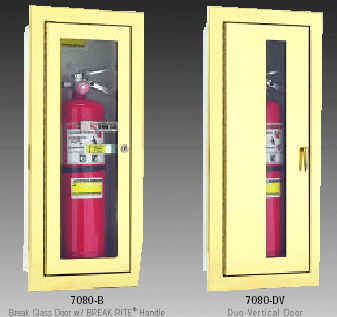

7080 -- DV

7080 - Cabinet Dimensions Mounting and Material

DV - Door Style - Duo-Vertical.

To Specify

1. Select the cabinet dimensions, mounting style, door and frame material from the Alta Series chart below. The cabinet dimensions and mounting type are determined by the fire extinguisher size and wall depth available.

2. Select the desired door style:

    -A     Full Glass

    -B     Full Break Glass with Lock*

    -D     Duo Panel

    -DV   Duo-Vertical Panel

    -DVL Duo-Vertical Panel with Lock*

    -E     Center Break Glass with Lock*

    -F     Solid Flush Channel

    -FS    Solid Flush Channel with Lock

    -FP    Full Glass with Flush Pull Handle

    * Furnished with Break Rite Handle.

3. Optional: Select the glazing material:

     -1        Bronze Tempered Safety Glass

     -2        Smoke Tempered Safety Glass

     -4        Obscure Tempered Safety Glass

     -5        1/4" Wire Inserted Glass

     -6        1/8" Clear Acrylic

     -7        1/8" Amber Acrylic

     -8        1/8" White Acrylic

     -9        1/8" Smoke Acrylic

     -10      1/8" Red Acrylic

4. Optional: Select lettering "fire extinguisher":

   Horizontal                               Vertical                            Vertical Ascending

   -HW^ White                            -VW White                       -VAW White

   -HB^ Black                              -VB Black                        -VAB Black

   -HR^ Red                                 -VR Red                           -VAR Red

   ^ Not Available on -A and -DV Doors.

5. Optional Construction and Finishes:

     FRC-          Fire-Rated Cabinets, add this prefix

     -RR            Rolled-Radius Frames, add this prefix

     -RED          Red Polyester Finish, add this suffix.

MODEL NUMBER WALL MOUNTING BOX I.D. FRAME O.D. WALL OPENING FRC OPTION ADA FOR USE WITH THESE EXTINGUISHERS
STEEL ALUMINIUM STAINLESS STEEL BRASS K L M N O W H D W H D
7007 7037 7057 7077 Recessed - 1/2 9 18 5 113/4 203/4 10 19 43/4 111/4 20 55/8 Yes 3002, 3005, 3005-3, 3302, 3305, 3305-3
7008 7038 7058 7078 Semi-Recessed -2 9 18 5 113/4 203/4 10 19 31/4 111/4 20 41/8 Yes
7009 7039 7059 7079 Surface 111/2 201/2 53/4 --- --- --- --- --- --- --- --- No
7010 7030 7050 7070 Recessed -1/2 9 24 5 113/4 263/4 10 25 43/4 111/4 26 55/8 Yes
7012 7032 7052 7072 Semi-Recessed -2 9 24 5 113/4 263/4 10 25 31/4 111/4 26 41/8 Yes
7013 7033 7053 7073 Semi-Recessed -3 9 24 5 113/4 263/4 10 25 21/4 111/4 26 31/8 Yes
7020 7040 7060 7080 Recessed -1/2 9 24 53/4 113/4 263/4 10 25 51/2 111/4 26 63/8 Yes 3006, 3010, 3306, 3310, 3405
7021 7041 7061 7081 Trimless 9 24 53/4 113/4 263/4 10 25 6 111/4 26 67/8 Yes
7022 7042 7062 7082 Semi-Recessed -2 9 24 53/4 113/4 263/4 10 25 4 111/4 26 47/8 Yes
7023 7043 7063 7083 Semi-Recessed -3 9 24 53/4 113/4 263/4 10 25 3 111/4 26 37/8 Yes
7024 7044 7064 7084 Surface 111/2 261/2 53/4 --- --- --- --- --- --- --- --- No 3020, 3202, 3320, 3410
7025 7045 7065 7085 Recessed -1/2 12 27 8 143/4 293/4 13 28 73/4 141/4 29 85/8 Yes
7026 7046 7066 7086 Trimless 12 27 8 153/4 303/4 13 28 81/4 141/4 29 91/8 Yes
7027 7047 7067 7087 Semi-Recessed -3 12 27 8 143/4 293/4 13 28 51/4 141/4 29 61/8 Yes
7028 7048 7068 7088 Semi-Recessed -5 12 27 8 143/4 293/4 13 28 31/4 141/4 29 41/8 No
7029 7049 7069 7089 Surface 141/2 291/2 8 --- --- --- --- --- --- --- --- No
