LOMA EXTINGUISHER CABINETS

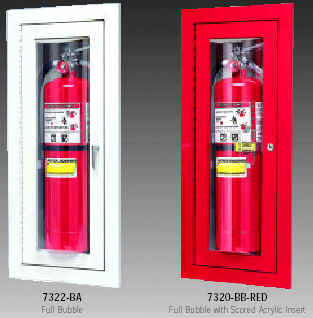

        A solution that clearly stands out from the crowd -- A convex, clear plastic "bubble" window is the earmark of Potter Roemer's Loma Series fire extinguisher cabinets. This ultra-practical design delivers 180 degrees of visibility for quick identification of the extinguisher. The Loma's shallow design is also ideal for cotemporary structures with limited wall depth.

Specification

            Fire extinguisher cabinet shall be Model No. _________________ as manufactured by Potter Roemer, Santa Ana, CA, 800-36-FIRE. Install the cabinet plumb and level, where indicated on the drawings, at heights acceptable to the authority having jurisdiction. Each cabinet shall have a Potter Roemer Model No. _____________ fire extinguisher installed inside.

Specification Example:

7320 -- BA

7320 - Cabinet Dimensions, Mounting and Material

BA - Door Style - Full Bubble with Catch

To Specify

1. Select the cabinet dimensions, mounting style, door and frame material from the Dana Series chart below. The cabinet dimensions and mounting type are determined by the fire extinguisher size and wall depth available.

2. Select the desired door style:

    -BA     Full Bubble with Catch

    -BB     Full Bubble with Scored Acrylic Insert and Trip Lever Cylinder Lock

3. Optional: Select the glazing material:

     -6        Clear Colorless

     -7        Bronze

     -9        Smoke

4. Optional: Select lettering "fire extinguisher":

     Vertical                            Vertical Ascending

     -VW White                       -VAW White

     -VB Black                        -VAB Black

     -VR Red                           -VAR Red

   ^ Not Available on -A and -DV Doors.

5. Optional Construction and Finishes:

     FRC-          Fire-Rated Cabinets, add this prefix

     -RR            Rolled-Radius Frames, add this prefix

     -RED          Red Polyester Finish, add this suffix.

MODEL NUMBER WALL MOUNTING BOX I.D. FRAME O.D WALL OPENING FRC OPTION ADA FOR USE WITH THESE EXTINGUISHERS
STEEL ALUMINIUM STAINLESS STEEL BRASS K L M N O W H D W H D
7307 7337 7357 7377 Recessed - 1/2 9 18 4 113/4 203/4 10 19 33/4 111/4 20 45/8 Yes 3002, 3005, 3005-3, 3302, 3305, 3305-3
7308 7338 7358 7378 Semi-Recessed -2 9 18 4 113/4 203/4 10 19 21/4 111/4 20 31/8 Yes
7309 7339 7359 7379 Surface 111/2 201/2 4 --- --- --- --- --- --- --- --- No 3002, 3005, 3005-3, 3006, 3010, 3302, 3305, 3305-3, 3306, 3310
7320 7340 7360 7380 Recessed -1/2 9 24 4 113/4 263/4 10 25 33/4 111/4 26 45/8 Yes
7321 7341 7361 7381 Trimless 9 24 4 123/4 273/4 10 25 41/4 111/4 26 51/8 Yes
7322 7342 7362 7382 Semi-Recessed -2 9 24 4 113/4 263/4 10 25 21/4 111/4 26 21/8 Yes
7324 7344 7364 7384 Surface 111/2 261/2 4 --- --- --- --- --- --- --- --- No 3020*, 3202*, 3320*, 3405
7325 7345 7365 7385 Recessed - 1/2  12 27 43/4 141/2 291/2 13 28 41/2 141/4 29 53/8 Yes
7226 7346 7366 7386 Trimless 12 27 43/4 151/2 301/2 13 28 5 141/4 29 57/8 Yes
7327 7347 7367 7387 Semi-Recessed -3 12 27 43/4 141/2 291/2 13 28 3 141/4 29 37/8 Yes
7329 7348 7369 7389 Surface 141/2 291/2 43/4 --- --- --- --- --- --- --- --- Yes

* Add 1" to M & D Dimensions
