The Pyro Chem Kitchen Knight™ Restaurant Kitchen Fire Suppression System is a pre-engineered solution to appliance and ventilating hood and duct grease fires.  The system is designed to maximize hazard protection, reliability, and installation efficiency.  Automatic or manual system activation releases a throttled discharge of potassium carbonate solution on the protected area in the form of fine droplets to extinguish the fire and prevent reignition after the discharge is complete.

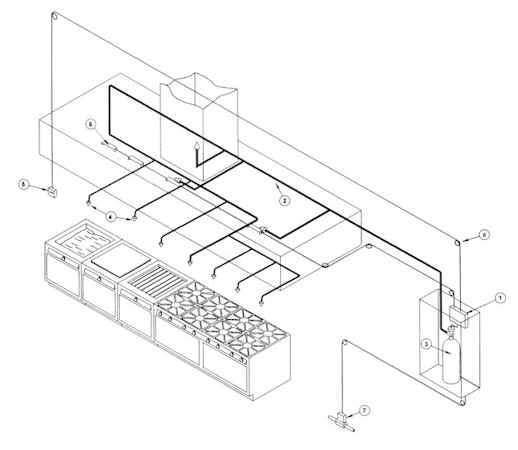

  1. CYLINDER CONTROL UNIT - Integral design requires no separate release  pressure cylinder - separate wire cable activation lines for automatic fusible link and remote pull station provide an added measure of safety - unique fool proof technique for achieving necessary input wire cable tension.
  2. PIPING -  Unbalanced piping network simplifies application design and installation - no separate piping to connect system pressure cylinders to extinguishing agent container.  Schedule 40 stainless, chrome-plated and black pipe can be used.
  3. CYLINDERS (DOT-4B-175 Rated) - Contain Pyro Chem Potassium Carbonate Solution stored at 175 psig - pressure gauge for visual maintenance checks - 2.40 and 3.50 gallon sizes provide 8 and 13 flow point coverage respectively, offering a broad range of application coverage.
  4. NOZZLES - Fixed and Swivel head nozzles have been established to relax placement tolerances.
  5. REMOTE MANUAL PULL STATION - Simple operating instructions with a double action release avoids careless system discharge - a 100' wire cable run with 1/16 inch cable and 17 corner pulleys maximum or 3/64 inch cable and 20 corner pulleys maximum allows mounting flexibility -  a dedicated  wire cable input line to the cylinder control head provides a true back-up in the event thermal links are fouled.
  1. FUSIBLE LINK KITS - Accommodates both series and terminal placement to minimize inventory and simplify ordering - all necessary components included for efficient assembly and installation - 350 F fusible link standard - other temperatures available - 15 fusible links on a 100' wire cable run with 20 corner pulleys maximum provides substantial hazard coverage.
  2. AUTOMATIC GAS SHUT-OFF VALVE - Complies with requirements pertaining to the shut-off of fuel as described by NFPA 17A - after regular maintenance/service check can be reset at control head for convenience of service technician - a 50' wire cable run with 15 corner pulleys maximum provides mounting flexibility.
  3. CORNER PULLEYS AND ACCESSORIES - Designed to ensure reliable system function, as tested by Underwriters Laboratories.
