MODEL MB-P2 - CONTROL HEAD MOUNTING BRACKET (P/N 550853)

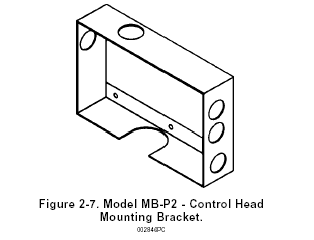

The Model MB-P2 mounting bracket must be used to mount the Model MCH3, NMCH3, or ECH3 control heads if the control head is not mounted directly on a cylinder valve. See Figure 2-7.

PNEUMATIC ACTUATING CYLINDERS

1. Model PAC-10 (P/N 550104)

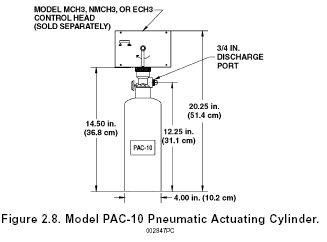

The Model PAC-10 is a pneumatic actuating cylinder that can actuate a maximum of ten (10) agent cylinders simultaneously. The Model PAC-10 includes a DOT 4BA350 cylinder pressurized with dry nitrogen to 350 PSIG $|@ 70 F. (24.1 bar @ 21 C), a brass valve with pressure gauge, and a wall mounting bracket. A Model MCH3, NMCH3, or ECH3 control head must be purchased separately and connected to the PAC-10 to open the valve. See Figure 2-8.
