DETECTION EQUIPMENT

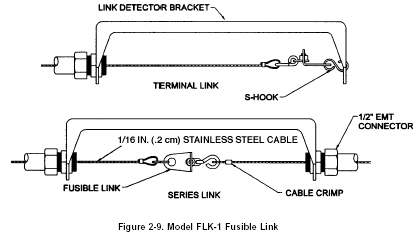

1. Model FLK-1 (P/N 550131)
The Model FLK-1 fusible link kit includes a 10 in. (25.4 cm) steel bracket, two (2) 1/2" EMT connectors, two (2) cable crimps, and two (2) "S" hooks. Fusible links must be ordered separately. See Figure 2-9

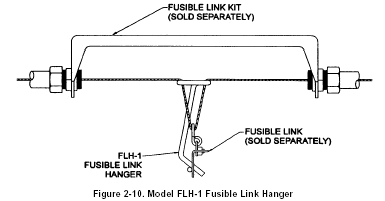

2. Model FLH-1 (P/N 550876)
The Model FLH-1 fusible link hanger is an accessory designed to simplify the installation of fusible links in the fusible link line. It can be used with Model FLK-1 fusible link kit (kits must be ordered separately). The Fusible Link Hanger makes it possible to install fusible links without cutting and crimping loops in the fusible link line for each link. They are available in packages of 25 (FLH-25) only. See Figure 2-10.
