10. Lava Rock Char-Broiler (624 sq. in. (4026 sq. cm) x 26 in. (66 cm) longest side maximum)
Note: Synthetic rock char-broilers are distinguished by the use of lava, pumice, or synthetic racks that are used for cooking.
One nozzle is available for lava rock char-broiler protection. The 2L nozzle, Part No. 551027, is used for both higher proximity and low proximity.

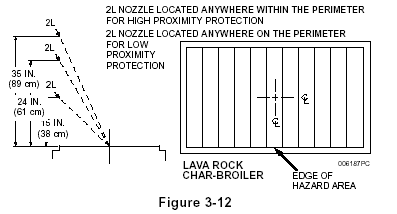

The 2L nozzle, Part No. 551027, is used for high proximity lava rock char-broiler protection. This nozzle is a two (2) flow nozzle. The nozzle must be located anywhere within the perimeter of the hazard area, 24 in. to 35 in. (61 to 89 cm) above the cooking surface of the appliance and aimed at the center of the broiler surface. See Figure 3-12.
The 2L nozzle, Part No. 551027, is used for low proximity lava rock char-broiler protection. This nozzle is a two (2) flow nozzle. The nozzle must be located anywhere on the perimeter of the hazard surface, 15 in. to 24 in. (38 to 61cm) above the cooking surface of the appliance and aimed at the center of the broiler surface. See Figure 3-12.
11. Natural Class 'A' Charcoal Char-Broiler (480 sq. in. (3097 sq. cm) x 24 in. (61 cm) longest side maximum)
Note: Class 'A' (natural) char-broilers are distinguished by the use of charcoal, mesquite chips, chunks, and/or logs that are used for cooking.
Two nozzles are available for natural charcoal char-broiler protection. High proximity and low proximity. The maximum depth of fuel (charcoal) must not exceed 6 in. (15 cm).
The 1H nozzle, Part No. 551029, is used for high proximity natural char-broiler protection. This nozzle is a one (1) flow nozzle. The nozzle must be located anywhere within the perimeter of the hazard area, 24 in. to 35 in. (61 to 89 cm) above the cooking surface of the appliance and aimed at the center of the broiler surface. See Figure 3-13.
The 1L nozzle, Part No. 551026, is used for low proximity natural charcoal char-broiler protection. This nozzle is a one (1) flow nozzle. The nozzle must be located anywhere on the perimeter of the hazard surface, 15 in. to 24 in. (38 to 61cm) above the cooking surface of the appliance and aimed at the center of the broiler surface. See Figure 3-13.
12. Mesquite Char-Broiler (480 sq. in. (3097 sq. cm) x 24 in. (61 cm) longest side maximum)
Two nozzles are available for mesquite char-broiler protection. High proximity and low proximity. The maximum depth of fuel (wood) must not exceed 6 in. (15 cm).

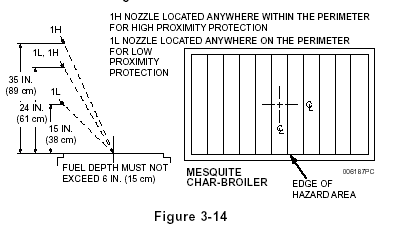

The 1H nozzle, Part No. 551029, is used for high proximity mesquite char-broiler protection. This nozzle is a one (1) flow nozzle. The nozzle must be located anywhere within the perimeter of the hazard area, 24 in. to 35 in. (61 to 89 cm) above the cooking surface of the appliance and aimed at the center of the broiler surface. See Figure 3-14.
The 1L nozzle, Part No. 551026, is used for low proximity mesquite char-broiler protection. This nozzle is a one (1) flow nozzle. The nozzle must be located anywhere on the perimeter of the hazard surface, 15 in. to 24 in. (38 to 61cm) above the cooking surface of the appliance and aimed at the center of the broiler surface. See Figure 3-14.
